Provides a solution to a number of applications that feature moulded edge profiles or lip doors. Possible drilling distance on the door from 3 to 18 mm. Features: Compensating side adjustment from -1.5 mm to +4.5 mm. Height adjustment +/-2 mm. Depth adjustment with Series 200 mounting plates +2.8 mm. Depth adjsutment with DOMI® snap-on mounting plates from -0.5 mm to +2.8 mm. Comes with anti-sliding safety stop.Cup depth: 9 mm

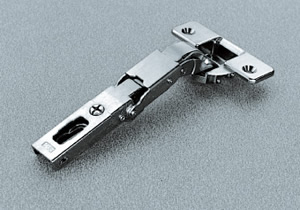

110° Hinge for doors with special profiles Additional InformationProduct Specifications
