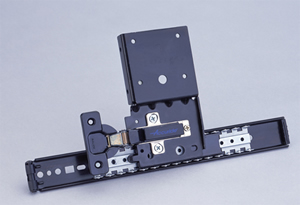

30 lbs. Flipper door slide with European clip-on hinge. Includes detent-out feature. Used for horizontal and vertical door applications up to 42" x 24". Provided 35mm hinges are for inset and face frame mounting. When doors are thicker than 13/16" in an inset application, order hinge kit part # A4180-0313-XE. In an overlay application for doors up to 15/16" thick, order hinge kit part # A4180-0314-XE.Finish: Black only (slides and hinges)Polybag includes: 2 - slides, 2 - clip-on hinges and factory attached hinge base plates, 2 - pivot blocks and all mounting hardware.
A123 Additional InformationSpecifications and Installation InstructionsAdditional Info 2Cross Section View with Specifications
