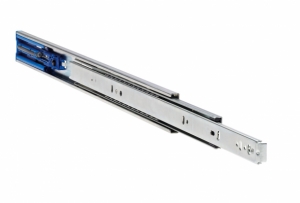

Accuride Model 3832EC - Easy Close 100 lb. Full Extension

Accuride Model 3832EC - Easy Close 100 lb. Full Extension

Full extension with .50" side space and lever disconnect for drawers up tp 16" wide.

  • Easy-Close mechanism has an automatic reset with a stroke of 1.75"
  • The partially shielded mechanism prevents unwanted debris from entering and interfering with operation
  • A balanced pull-force ensures the drawer is less likely to pull out of the users hand and unintentionally re-close when opening
  • Includes Cam Drawer Adjust feature

Note:: For optimal operation, the correct side spave dimension is critical. Be sure the drawer box is 1-1/16" smaller than the cabinet drawer opening.

Accuride Model 3832EC - Easy Close 100 lb. Full Extension Additional Information

Additional Info 1

Please select from the Options below
OptionsOur PriceBuy
Slide Length: 14"
Finish: Zinc
UOM: PAIR
$17.31
Slide Length: 16"
Finish: Zinc
UOM: PAIR
$17.53
Slide Length: 18"
Finish: Zinc
UOM: PAIR
$17.75
Slide Length: 20"
Finish: Zinc
UOM: PAIR
$18.15
Slide Length: 22
Finish: Zinc
UOM: PAIR
$18.76
Slide Length: 24"
UOM: PAIR
$19.67
Slide Length: 26"
Finish: Zinc
UOM: PAIR
$20.15
Slide Length: 28"
Finish: Zinc
UOM: PAIR
$21.02
