Floor Sliding CD 40 CX

Floor Sliding CD 40 CX

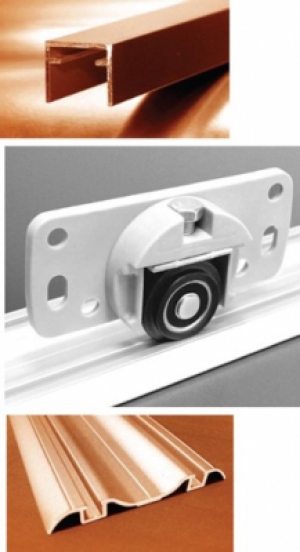

Floor sliding system for bypass doors installed inlay the opening. Ideal for closet application. For door thickness 5/8" to 15/16"

  • Door weight capacity up to 88 lbs.
  • One box with all you need to install 2 doors, order the track and guide and you are ready to go.
  • Ball bearing high quality rollers for a silent smooth glide.
  • Stoppers with retention device.
  • Double aluminum track allows a smooth, silent performance and easy installation.
  • Carrier perforations are in system 32 for mechanical installations.
  • Easy to regulate and adjust.

Carrier Set: 4 carriers, 2 upper right & 2 upper left guides, 4 stoppers, 4 secure locks, 1 M5 key and screws.

Floor Sliding CD 40 CX Additional Information

Product Information Sheets
Product Manual

Please select from the Options below
OptionsOur PriceQtyBuy
Description: CD 40 CX Hardware set for 2 doors
Description: Upper Track GD50 AL
Length: 6-1/2 ft.
Description: Flush mount lower track CXE inset AL
Length: 6-1/2 ft.
