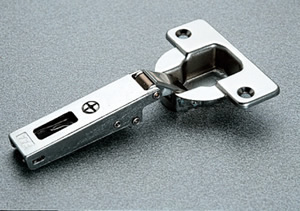

Series F Hinges For Thick Doors up to 1-1/2"

Series F Hinges For Thick Doors up to 1-1/2"

For profile and thick doors up to 40 mm. 13 mm deep steel cup. 40 mm cup diameter. 94° opening. Possible drilling distance on the door from 3 to 15 mm. Compatible with all traditional Series 200 mounting plates and with all DOMI® snap-on mounting plates. Compensated side adjustment from o.o5 mm to +5.5 mm. Height adjustment +/- 2 mm. Depth adjustment with Series 200 mounting plates +2.8 mm. Depth adjustment with DOMI® mounting plates from -0.5 mm to + 2.8 mm.

Series F - For Thick Doors up to 1-1/2" Additional Information

Product Specifications

Please select from the Options below
OptionsOur PriceQtyBuy
Style: Free-swing
Attachment: Screw-in
Application: Full overlay
UOM: EACH
$5.10
Style: Self-close
Attachment: Screw-in
Application: Full overlay
UOM: EACH
$5.25
Style: Self-close
Attachment: Screw-in
$5.42
