Top Sliding DN 80 CF

Top Sliding DN 80 CF

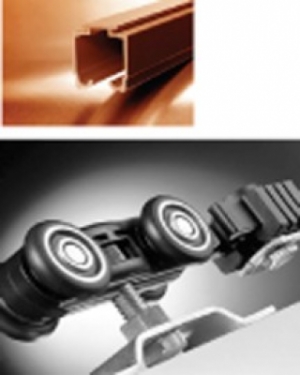

Top sliding system for doors installed inlay the opening and traveling inline. Installation of 2 U21 tracks in parallel allows for 2 doors traveling in bypass. For 13/16" minimum door thickness.

  • One box with all you need to install 1 door, just order the track and you are ready to go.
  • Ball bearing high quality rollers, and aluminum track allow for a silent and smooth glide.
  • 176 lbs max weight per door.
  • Stoppers with retension device installed inside the track will stop and retain the door in position.
  • Fascia for U 21 track (accessory) will easily install with a snap providing an elegant finish.
  • Bracket for U 21 track (accessory) will allow the installation of the track to the wall, avoiding the need of structural modifications in your room.

Carrier Set: 2 carriers, 2 stoppers with retention devices, 1 floor guide, 2 mounting plates and screws.

Top Sliding DN 80 CF Additional Information

Product Information Sheets
Product Manual

Please select from the Options below
OptionsOur PriceBuy
Description: Carrier set for 1 door
SKU: DC013203
UOM: SET
$67.31
Description: U21 Upper track
Length: 6.5'
SKU: DC021U211
UOM: EACH
$62.14
Description: U21 Upper track
Length: 8'
SKU: DC021U21-8
UOM: EACH
$77.14
